GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet
Bottle Height (mm)396
Bottle Diameter (mm)310
Valve typeSINGLE
Empty bottle weight (kg)3.95
LPG Capacity (approx litres)10.0

GasBank SINGLE 5 kg - LPG Refillable Gas Cylinder - DIN (G12 KLF) Inlet/Outlet

  • Refillable LPG Gas Cylinder
231,30 €
incl. VAT / szt.
Express checkout 1-Click(without registration)
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Save by buying more

Domyślna nazwa

Domyślna nazwa

387,58 €335,72 € incl. VAT
Cheaper in the set by 13%
See the set

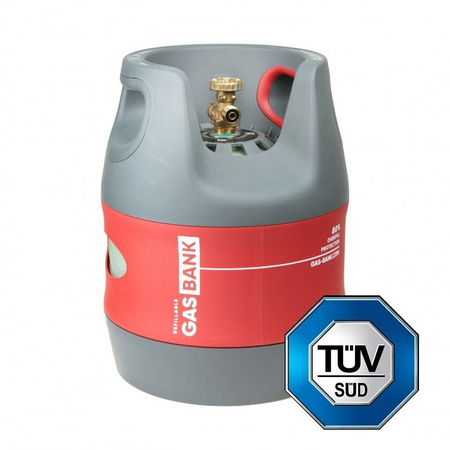

GasBank SINGLE 5 - Refillable LPG Gas Cylinder - Lightweight Composite with Overfill Protection Valve - DIN (G12 KLF) Inlet/Outlet

Refillable gas cylinder for LPG storage uded for BBQ, camping, cooking, heating at home, on campervan, caravan, motorhome, boat, for industrial burners and blowtorches or any application where the standard LPG bottle can be used.

Cylinder is made from lightweight composite material for durability and high protection demands, net weight of 11KG cylinder is only 5.51KG.

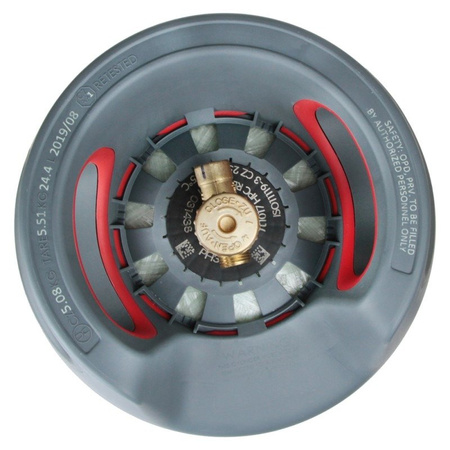

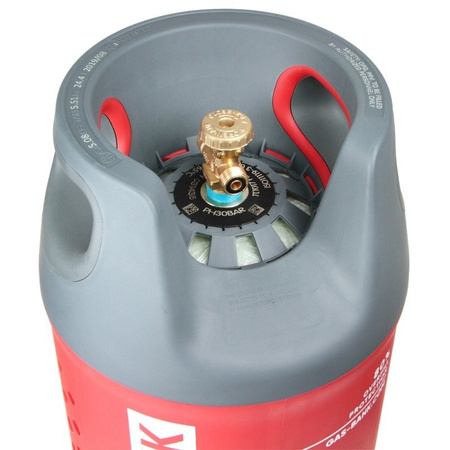

Cylinder is equipped with most common in Europe G12 inlet - outlet valve with rubber sealing, known also as KLF - Kleinflashe (G.12). Valve thread is W 21.8 x 1/14 lh. This type of valve is used in countries such as: Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Ireland, Luxembourg, Netherlands, Norway, Poland, Russia, Serbia, Slovenia, Spain, Switzerland, United Kingdom.

Valve in opposite to standard bottles have unique build in OPD device to make safe refilling at any LPG station possible.

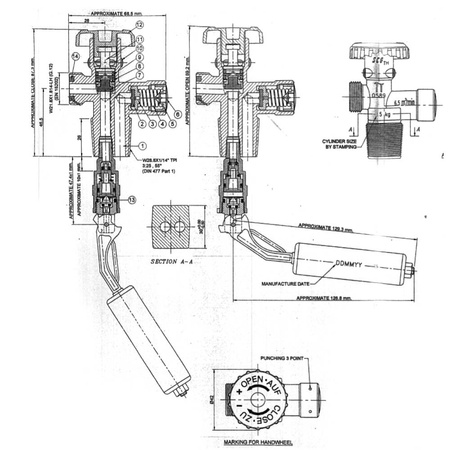

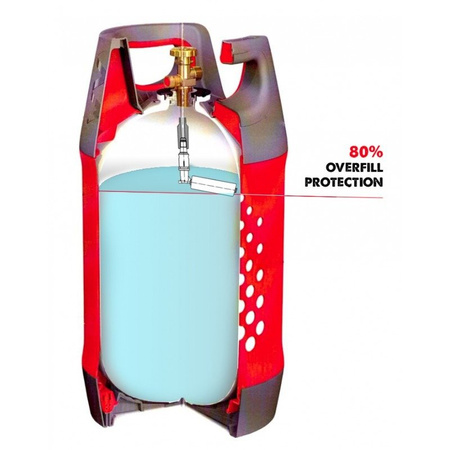

Automatic OPD valve (Overfill Protection Device) which automatically stops refilling pump when the gas level reaches 80%.

Cylinders with refilling adapters for different countries are available on the website as a different products.

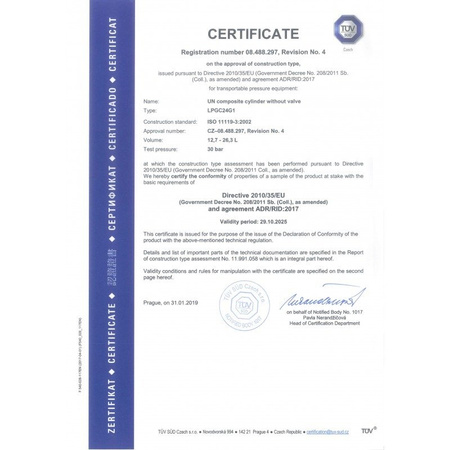

All GasBank cylinders are designed and produced in accordance with Directive 2010/35/UE. They all have the π safety mark issued by TÜV

Main advantages of composite cylinder:

  • Safe refuelling propane butane cylinder for cooking, heating and many more, thanks to overfill protection valve
  • Ultra low weight
  • No rust
  • Explosion proof in fire
  • Great look
  • Easy gas level control, transparent walls
  • Cleaning and painting is not required

Refilling procedure:

  1. Install and hand tight filling adapter. Note: rotate anticlockwise to screw adapter in.
  2. Make sure that the bottle is standing vertically and it is levelled.
  3. Connect refilling gun - align nozzle with lugs, twist clockwise and secure lever.
  4. Open gas valve - you will hear small amount of gas transferring to the bottle - this is normal.
  5. Hold refuelling button until pump stops.
  6. Fully close the valve, slowly release the leaver, disconnect filling nozzle and you are good to go!
To download
Brand
Symbol
GB001
Producer code
9757
Wymiary
Bottle Height (mm)
396
Bottle Diameter (mm)
310
Technical Specification
Valve type
SINGLE
Empty bottle weight (kg)
3.95
LPG Capacity (approx litres)
10.0
Propane Capacity (kg)
5
Water Content (L) [eng]
12.5
Minimum Burst Pressure
72 Bar (ISO 11119-3:2013)
Applicable Standards
ISO 11119-3:2013, ADR 2019, Directive 2010/35/EU
Approved For
UN 1011, 1075, 1965, 1969, 1978
Container Weight (Excluding Valve)
Small - 3.4±0.2 Kg
Medium - 4.1±0.2 Kg
Large - 5.0±0.2 Kg
Tare Weight (Including Valve)
Small - 3.95±0.2 Kg
Medium - 4.65±0.2 Kg
Large - 5.55±0.2 Kg
Valve Inlet Thread
25E ISO 11363-1
Valve Outlet Connection
G.12 EN15202
Valve Mounting Torque
170 Nm Max.
